Yutaka's brake parts
What is a brake disc?
Brake discs are parts used in the braking devices that decelerate and stop automobiles and motorcycles.
When brake pads are pressed onto the brake disc, the resulting friction creates a force that slows the motorcycle. Compared to a drum brake, disc brakes have superior heat dissipation properties, because they are always exposed to the air, and can therefore maintain stable braking forces.

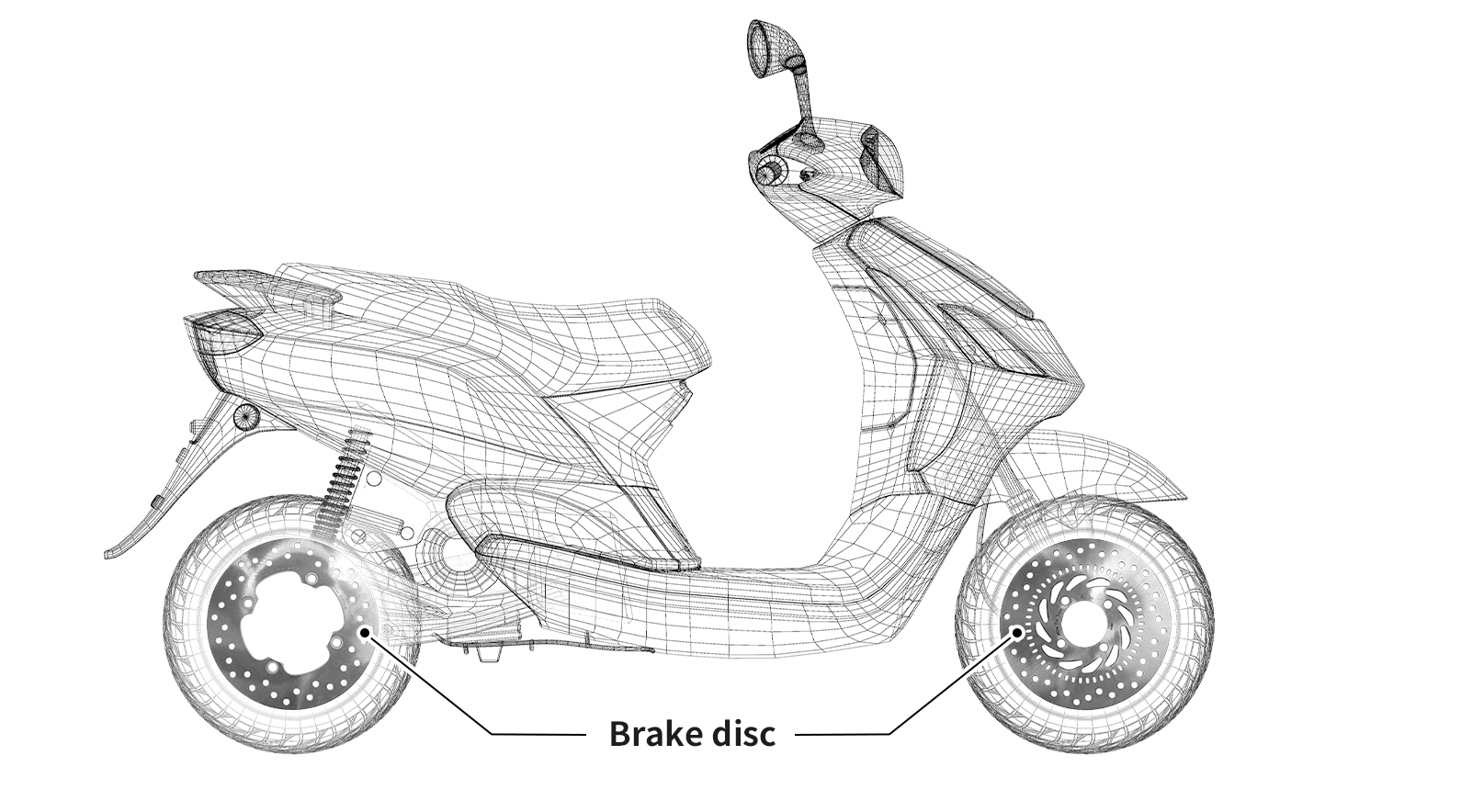

Mounting position
On motorcycles, brake discs are attached to the wheels. They come in a variety of forms and hues since they are external components that also affect the vehicle's appearance.
Structure

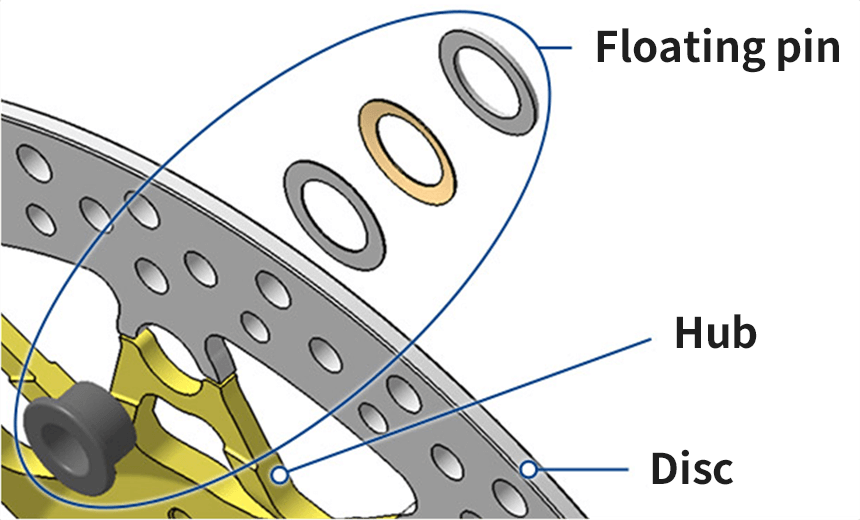

A typical structure is floating discs.
This structure is separated into the disc that generates the friction and the hub that retains the disc, with the two parts connected using floating pins.
With this structure, the discs are allowed to float so they track the brake pads better while braking, and because distortions in the discs caused by heat can be absorbed. They are used in motorcycles where strong braking performance is required.

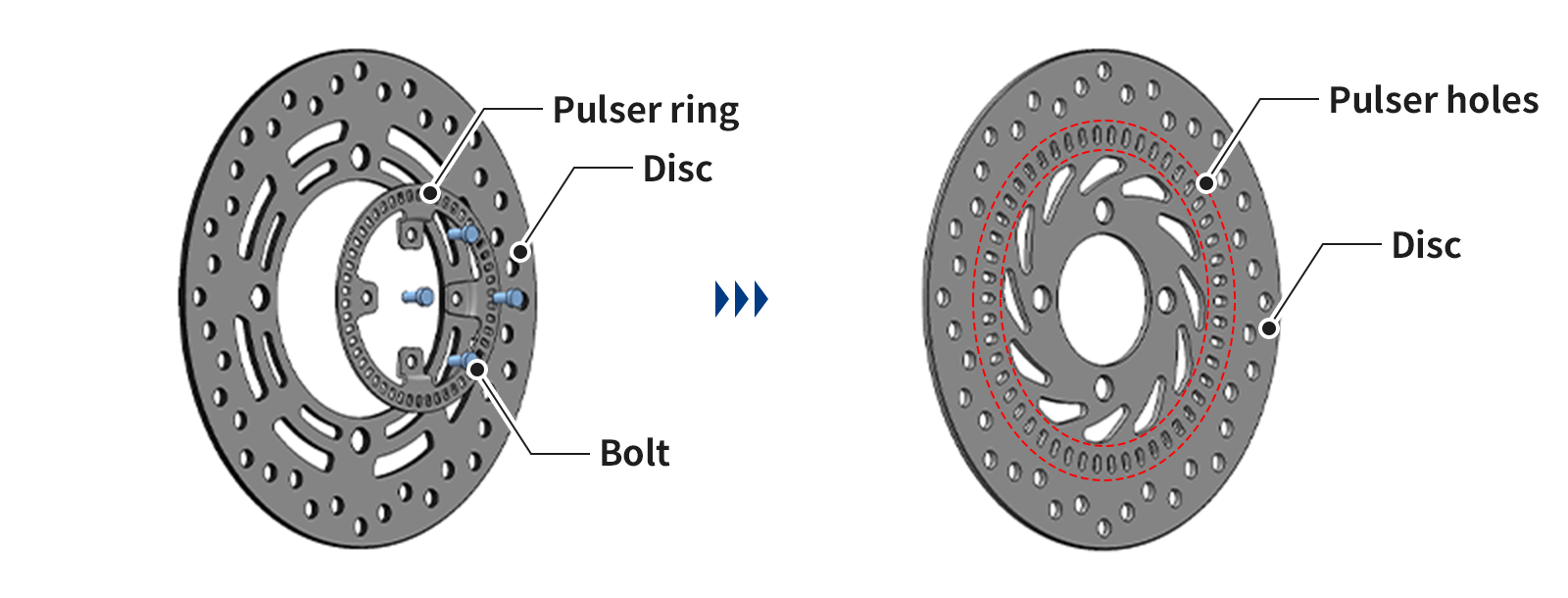

Motorcycles equipped with an ABS have a pulser ring around the disc brake to detect wheel rotation.

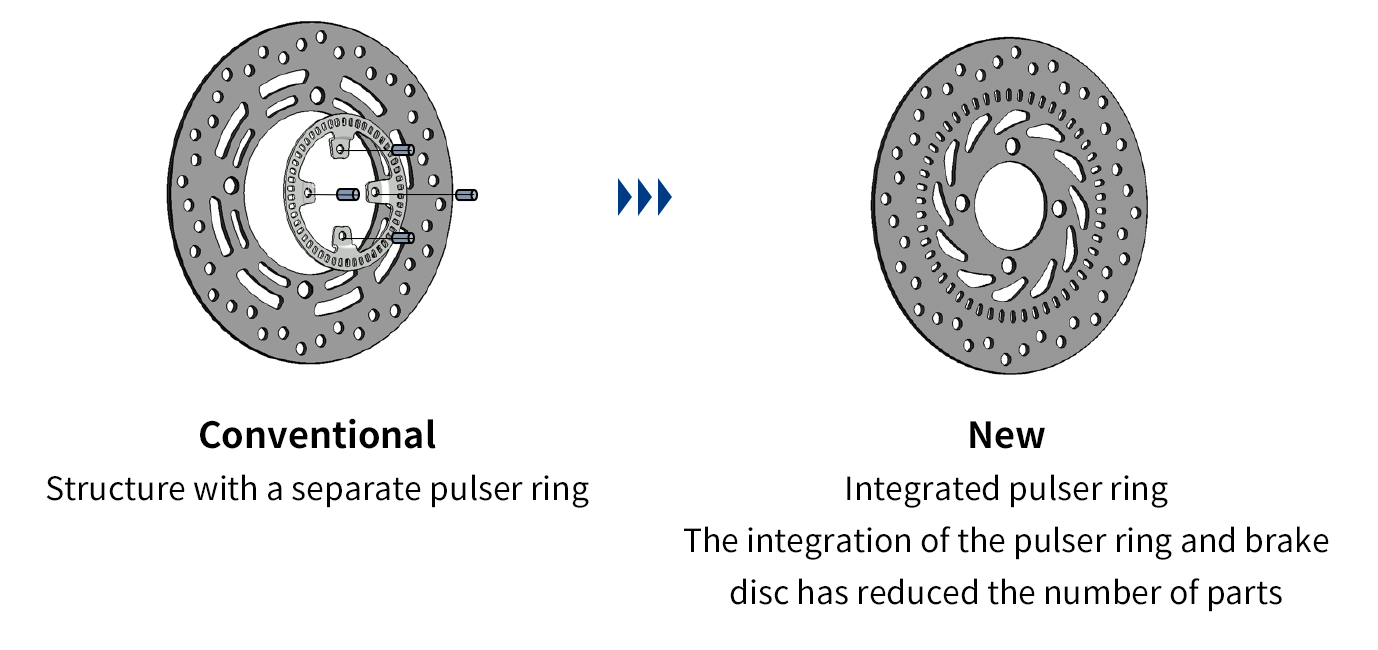

The pulser ring, which had been separated from the brake disc, has been integrated into it. This contributes to a reduced number of parts.
Yutaka's strengths
- Able to develop and produce light, rigid, and stable brake discs
- Able to deliver brake discs at reasonable prices from production bases in Asia (Indonesia and India)
Pulser ring-integrated brake disc
Testing
Yutaka can conduct testing that simulates the actual parts that catch the wind from the front of the vehicle and cool down rapidly when exposed to rainwater during braking.
Bench testing equipment for discs only
Verifies the functionality, performance, and durability of a brake disc.
Product lineup
Floating
Solid
Pulser-integrated disc
Offset
Ventilated
Brake System Production Technologies
Press Processing/Machining/Heat Treatment/Surface Treatment /Joining Technology
Sales
Yutaka is developing and producing brake discs, which are a safety feature in deceleration and stopping motorcycles.
Yutaka offers a range of goods worldwide that are tailored to the specific requirements of every nation and area. These products include offset discs, solid discs, and floating discs.
Taking advantage of its unique stamping and riveting technologies, Yutaka will be working hard to meet requests in terms of quality and performance. Please feel free to contact us.
